Pneumatic/Electric Three-Way Ball Valve

Pneumatic/Electric Three-Way Ball Valve
I. Product Overview

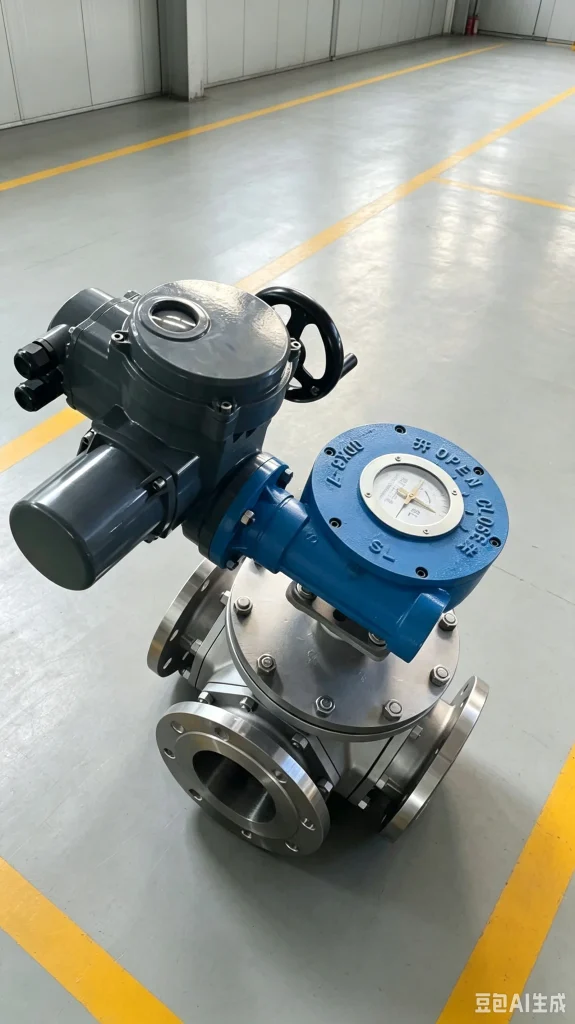

Pneumatic and electric three-way ball valves are automated control valves designed for flow direction switching, diverting, and converging in industrial pipelines. They consist of a three-way valve body, a ball with specialized flow channels, valve seat seals, and a pneumatic or electric actuator. By rotating the ball 90°, the valve switches the flow direction or enables the convergence of two streams or the diversion of one stream into two. This replaces traditional combinations of two-way valves, thereby simplifying piping systems and reducing potential leakage points.
These valves are available with L-type or T-type flow channel configurations and support pneumatic on/off, electric on/off, and intelligent electric modulation operations. They can be equipped with accessories such as solenoid valves, air service units (FRLs), limit switches, and 4-20mA intelligent positioners. They are widely used in automated control systems for HVAC, hot water, steam, chemical processing, water treatment, oil and gas, and heat exchange applications.
II. Flow Channel Structure Principles (L-Type / T-Type)

1. L-Type Three-Way Ball Valve (Q44F / Q644F / Q944F)
   Designed solely for flow direction switching; it switches between two perpendicular channels, and the three ports cannot all communicate simultaneously. It is suitable for applications requiring switching between two directions (e.g., A→B or A→C), such as switching between hot and cold media, pipeline flow reversal, or single-path diversion.
2. T-Type Three-Way Ball Valve (Q45F / Q645F / Q945F)
   Capable of diverting, converging, and enabling three-way interconnection; it allows any two ports to connect or all three ports to connect simultaneously. It is suitable for processes involving splitting one inlet into two outlets or merging two inlets into one outlet, and is commonly used in flow distribution, mixing/proportioning, and pressure-stabilized diversion systems.
   III. Structural Features
3. Multi-purpose valve, simplified piping: A single valve replaces two straight-through ball valves, reducing pipeline connections, lowering the risk of leakage, and saving installation space.
4. Unobstructed flow path, low resistance: Features a streamlined bore structure ensuring smooth medium flow; there are no stagnant “dead zones,” making it resistant to sediment accumulation and clogging. 1. Excellent Sealing Performance: Utilizes PTFE, RPTFE, or PPL soft seals to ensure zero-leakage sealing; high-temperature models feature heat-resistant seals for stable, long-term operation.

• Anti-Blowout Stem Design: High-pressure self-locking stem design prevents the stem from being ejected by high-pressure media, ensuring a high safety factor.

2. Strong Automation Compatibility: Pneumatic models offer rapid actuation and are suitable for explosion-proof environments; electric models provide precise control, support remote DCS signal integration, and allow for proportional regulation.

• Flexible Installation Orientation: No strict flow direction limitations; three-way ports allow for flexible inlet/outlet configurations, ensuring excellent adaptability to on-site conditions. IV. Material Specifications
• Valve Body: WCB carbon steel, 304 stainless steel, 316L stainless steel
• Ball: 304 or 316L precision-cast solid ball; mirror-polished and wear-resistant
• Seat Seal: PTFE, RPTFE, PPL (high-temperature resistant), or optional metal-to-metal hard seal
• Stem: 2Cr13, 304, or 316L stainless steel
  V. Technical Parameters
• Nominal Size: DN15–DN200
• Pressure Rating: PN16, PN25, PN40; Class 150LB, 300LB
• Configuration: L-port (diverting/switching), T-port (diverting/mixing)
• Connection Type: Flanged, threaded, butt-weld, or clamp
• Actuation: Pneumatic (double-acting/single-acting), electric (on/off), or electric (modulating)
• Control Signal: On/off signal / 4–20mA DC analog modulating signal
• Operating Temperature: -20°C to 350°C (depending on seal material)
• Applicable Media: Water, steam, hot water, air, fuel gas, oil, and mildly corrosive liquids/gases
• Leakage Class: Class VI (zero leakage)
• Protection Class: IP65; optional explosion-proof (Ex d IIC T6)
  VI. Applications
  ✅ Suitable Scenarios
• HVAC and heating/cooling circulation systems: Automatic switching of heating/cooling media, flow splitting for temperature control
• Heat exchange units, boiler auxiliaries, and steam pipelines: Mixing, diverting, and pressure-stabilizing switching control
• Chemical industry, light industry, and water treatment: Fluid proportioning, media switching, and pipeline flow splitting/mixing
• Oil, gas, and fuel gas transmission: Gas flow switching, branch line switching, and automatic transmission/distribution switching Automated production lines: remote automatic pipeline switching, intelligent fluid distribution systems.
  ❌ Incompatible Operating Conditions

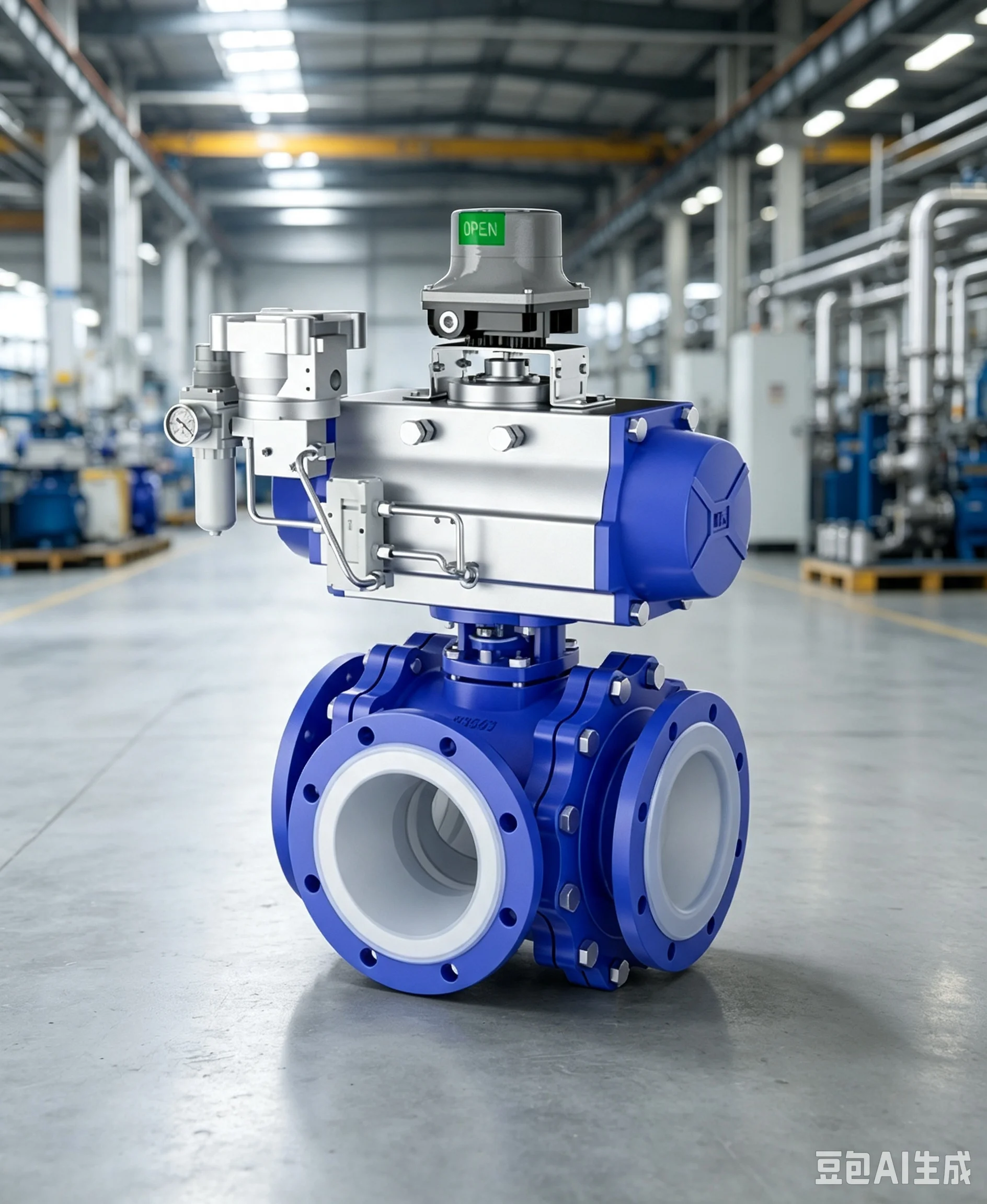

2. Highly acidic/alkaline or strongly corrosive media (requires switching to fluorine-lined three-way ball valves).
3. Conditions involving large quantities of hard particles or severe erosive wear.
4. Conditions exceeding rated temperature and pressure parameters.
   VII. Applicable Standards

• Design & Manufacturing: GB/T12224, GB/T12237
• Flange Standards: HG20592, ASME B16.5

1. Pressure Testing: GB/T13927, API598
2. Fire Safety & Anti-static: API607
   VIII. Installation and Usage Instructions
3. Clean welding slag and debris from the pipeline before installation to prevent hard particles from scratching sealing surfaces and causing internal leakage.
4. The valve body can be installed at any angle; keep the actuator horizontal or vertical and reserve space for maintenance.
5. For pneumatic models, install an air service unit (FRL) to ensure the air supply is dry and clean, thereby extending actuator service life.

• For electric models, verify travel limits before powering on to prevent over-travel damage to the ball and seat.

2. Commission and confirm the L-port or T-port flow logic to ensure flow splitting and switching actions align with process requirements.

• For long-term operation, perform periodic opening and closing cycles to prevent sealing surface adhesion or scale buildup.
  IX. Summary of Product Advantages
  Pneumatic/electric three-way ball valves integrate flow switching, splitting, and merging functions into a single unit, offering versatility, easy installation, excellent sealing, rapid response, and stable automatic control. They can fully replace traditional dual-valve piping arrangements, significantly simplifying system architecture and reducing failure rates; they are the preferred choice for automated fluid switching systems in HVAC, district heating, chemical processing, and water treatment applications.
