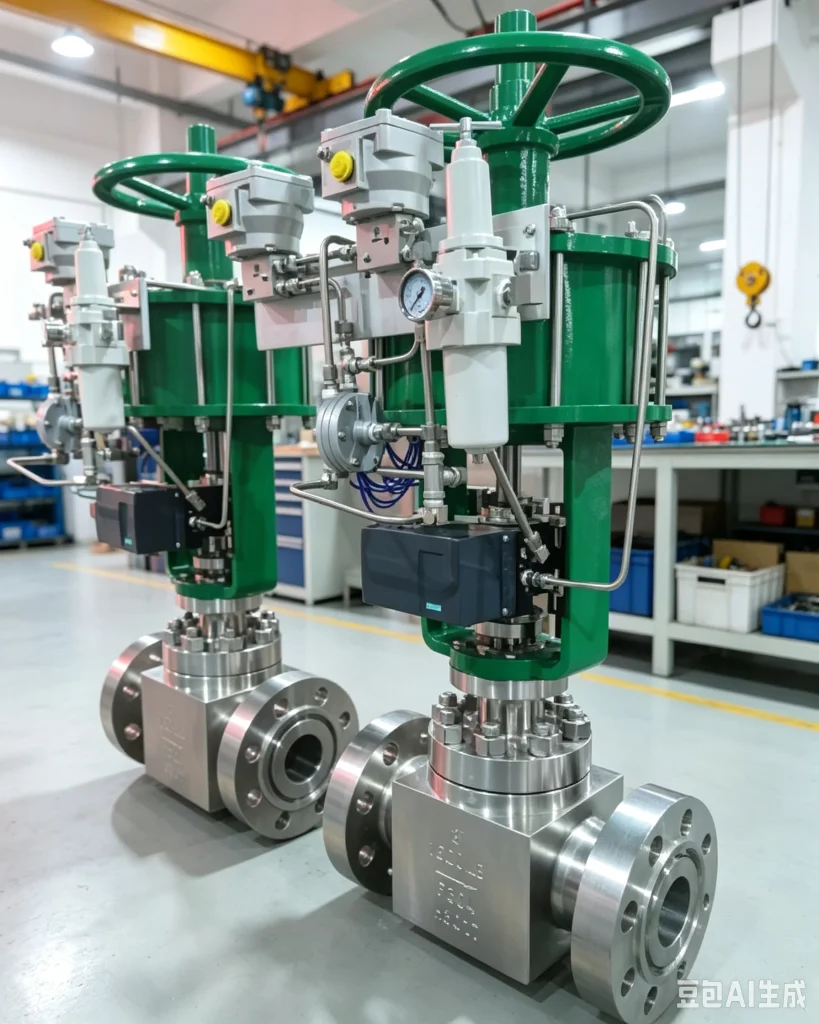

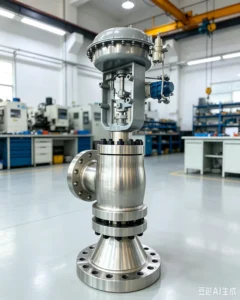

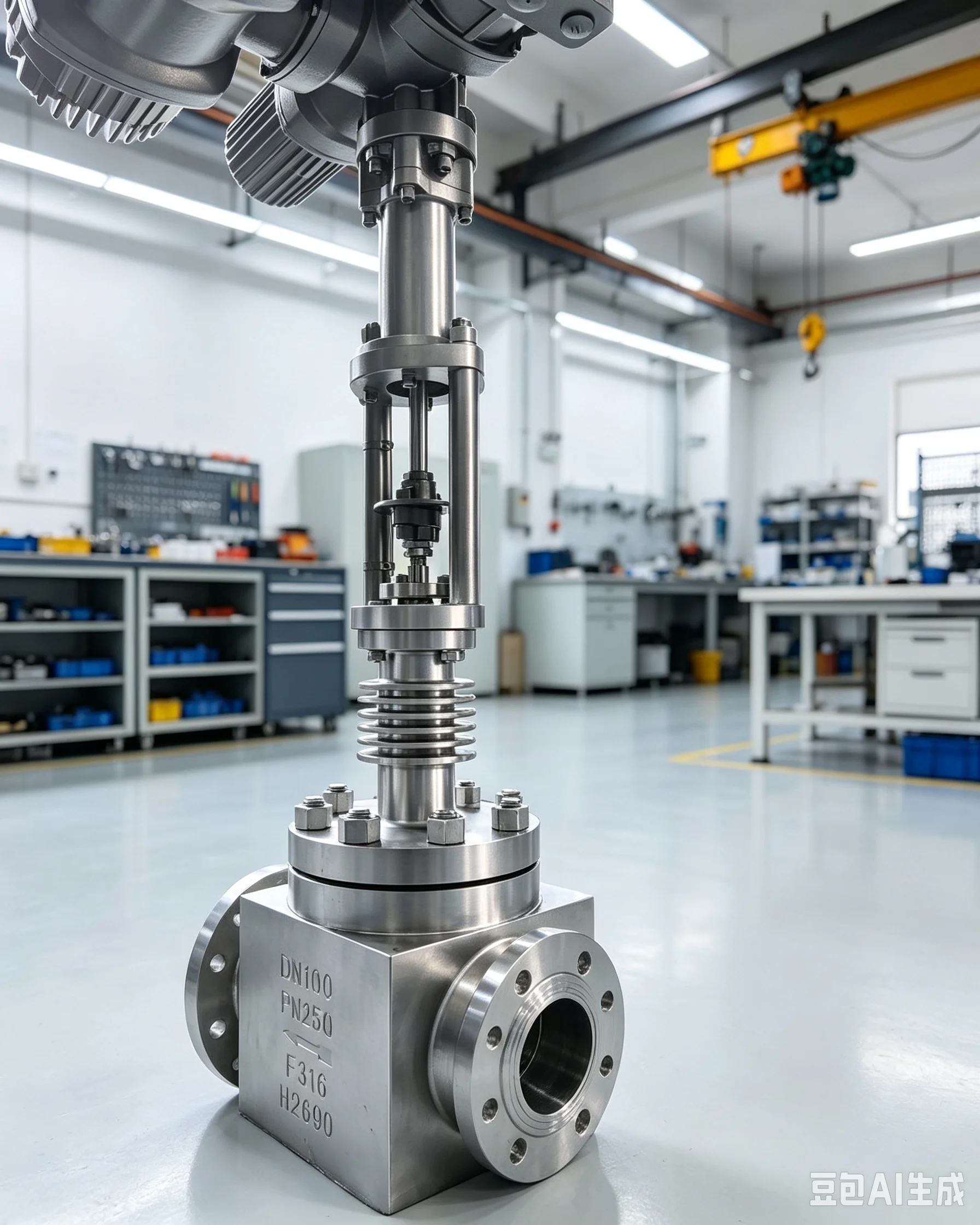

High-Pressure Multi-Stage Pressure-Reducing Control Valve

I. Product Overview
The high-pressure multi-stage pressure-reducing control valve is a specialized valve designed for severe service conditions. Unlike conventional single-stage sleeve valves, it utilizes a multi-stage series-throttling, labyrinth-style structure for stepped pressure reduction. By dissipating fluid pressure incrementally—breaking down a massive single-stage pressure drop into multiple smaller steps—it fundamentally resolves issues such as cavitation, erosion, excessive noise, plug vibration, and valve failure caused by high pressure differentials.
Featuring high control precision, erosion resistance, high-pressure capability, cavitation prevention, and low noise, this valve is engineered for extreme industrial pipeline applications involving ultra-high pressures, massive pressure differentials, high temperatures, and trace particulates. It is widely used in critical automated control systems for thermal power plants, power stations, coal chemical processing, hydrogenation units, high-pressure feedwater lines, steam venting, and desulfurization/denitrification processes.
II. Core Structural Principles
The valve trim employs a multi-stage pressure-reducing cage sleeve combined with a multi-layer labyrinth flow path structure. As the medium passes through each layer of the flow path, pressure decreases incrementally, flow velocity is regulated, and turbulent eddies are broken up; this prevents vaporization caused by localized negative pressure and completely suppresses cavitation. – Multi-stage pressure reduction: Dissipates massive pressure differentials in stages to avoid high-pressure shock from single-stage throttling, thereby protecting the valve plug and seat.

• Controllable flow velocity design: Limits high-speed fluid impingement, significantly reducing the risk of wear, erosion, and breakthrough.
• Separation of throttling and sealing functions: High-pressure erosion occurs within the multi-stage sleeve flow paths; sealing surfaces remain free from erosion, ensuring long-term zero leakage.
• Pressure-balanced plug: Balanced structure minimizes stem thrust, ensures stable operation without chatter, and provides excellent control linearity.
• Fully hardened internals: Plug, sleeve, and seat feature integral hard-facing (e.g., Stellite) for superior wear and erosion resistance, greatly extending service life.
  III. Product Structural Features
• Exceptional cavitation resistance: Engineered specifically for high-pressure-drop cavitation conditions; eliminates cavitation damage, valve perforation, vibration, and abnormal noise.
• Ultra-low noise operation: Multi-stage labyrinth noise-reduction structure delivers significant noise suppression, meeting strict plant noise requirements.
• Ultra-high pressure capability: Solid-forged or thick-walled cast valve body ensures a dense structure, preventing deformation and leakage.
• High control precision: Precise response to 4-20mA signals and a high turndown ratio make it ideal for continuous, stable process control.
• Easy maintenance: Modular internal design allows for individual replacement of the sleeve or plug without removing the valve from the pipeline.
• Explosion-proof smart configuration: Compatible with smart pneumatic or electric actuators, explosion-proof positioners, valve position feedback, and emergency handwheels.
  IV. Common Material Configurations
  Valve Body: WCB, WC6, WC9, 304, 316L, F22, Duplex Steel 2205/2507
  Internals (Plug/Sleeve/Seat): 316L, Stellite alloy hard-facing, wear-resistant carbide treatment
  Sealing/Packing: Flexible graphite, high-temperature packing, bellows for zero-leakage sealing
  V. Technical Parameters
  • Nominal Diameter: DN20–DN250
• Pressure Rating: PN160, PN220, PN320, PN420; Class 900, 1500, 2500 LB (Ultra-high pressure series)
• Differential Pressure Capability: Suitable for extreme differential pressure conditions (capable of withstanding differentials up to the tens of MPa range)
• Temperature Range: -29°C to 570°C (Specialized for high-temperature power plants and steam applications)
• Flow Characteristics: Equal percentage, linear
• Leakage Class: Class IV, V, and VI (High-precision sealing)
• Actuation: Pneumatic diaphragm, pneumatic piston, intelligent electric
• Connection Type: Flanged, butt-weld, socket-weld (Standard for high-pressure piping)
  VI. Applicable Operating Conditions (Core Applications)
  This valve is not intended for standard low-pressure applications; it is specifically designed to resolve severe operational challenges that conventional control valves cannot handle:
• Thermal and Cogeneration Power Plants: High-pressure regulation for boiler feedwater, desuperheating and pressure reduction, main steam, and reheat steam
• Coal Chemical & Petrochemical Hydrogenation Units: High-pressure reaction, high-pressure feed, and high-pressure reflux processes
• Systems requiring regulation across extreme pressure differentials for high-pressure gases, liquids, or steam
• Pipelines prone to cavitation, erosion, high noise levels, or frequent valve failure
• Power plant venting, high-pressure desulfurization and denitrification processes, and high-pressure fluid systems for energy storage
  VII. Execution and Testing Standards
• Design Standards: GB/T 4213, IEC 60534, ASME B16.34
• High-Pressure Flange/Welding Standards: ASME B16.5, GB/T 9113
• Pressure Testing Standards: API 598, GB/T 13927
• Explosion-proof Standard: Ex d IIC T6
  VIII. Installation and Operation Instructions
  • Must be installed vertically in an upright position with the actuator facing upward; tilting or inverted installation is prohibited to prevent jamming caused by high-pressure medium impact.
• Thoroughly purge the pipeline before installation; strictly prevent welding slag or hard particles from entering the multi-stage sleeve flow paths.
• For high-pressure applications, perform test runs with a gradual pressure increase; sudden full-pressure surges are prohibited.
• Periodically calibrate the positioner’s zero point and span to ensure precise, linear control.
• For long-term operation, inspect internal component wear and packing seal integrity every six months.
  IX. Summary of Product Advantages
  The high-pressure multi-stage control valve is the optimal solution for applications involving ultra-high pressure differentials, cavitation, erosion, and high noise levels. It overcomes the common drawbacks of standard single-seat and sleeve valves—such as susceptibility to cavitation and wear, excessive noise, short service life, and unstable regulation—offering stable operation and eliminating the need for frequent maintenance. It is the standard control valve for critical high-pressure pipelines in power plants and petrochemical facilities.
